LMZ14201HTZX/NOPB

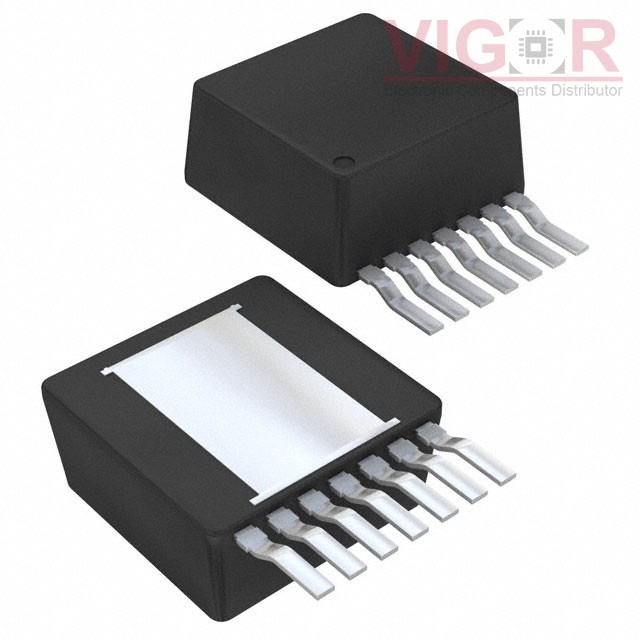

Image is for reference,
please contact us to get the real picture

Part No :: LMZ14201HTZX/NOPB

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 5-30V

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: LMZ14201HTZX/NOPB PDF

Availability: 894 pieces

Unit Price: ~~$72.00000~~

Current price of LMZ14201HTZX/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LMZ14201HTZX/NOPB Specifications

Type	Description
Series:	SIMPLE SWITCHER®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	6V
Voltage - Input (Max):	42V
Voltage - Output 1:	5 ~ 30V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	97%
Mounting Type:	Surface Mount
Package / Case:	TO-PMOD-7, Power Module
Size / Dimension:	0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
