PTH04T221WAZ

PTH04T221WAZ

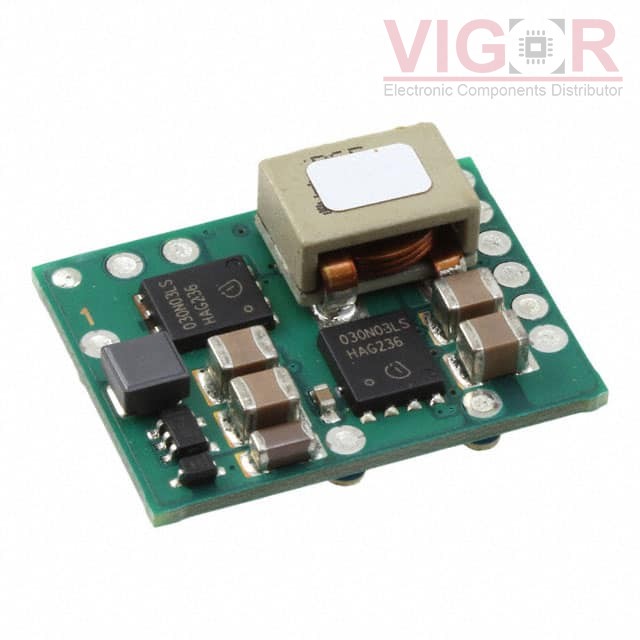

Image is for reference,
please contact us to get the real picture

Part No :

PTH04T221WAZ

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 0.69-3.6V
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
PTH04T221WAZ PDF
Availability
916 pieces
Unit Price
$19.20000

Current price of PTH04T221WAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTH04T221WAZ Specifications
Type Description
Series:PTH04T221W
Package:Tray
Part Status:Active
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):2.2V
Voltage - Input (Max):5.5V
Voltage - Output 1:0.69 ~ 3.6V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):16A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, OTP, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:94%
Mounting Type:Surface Mount
Package / Case:11-SMD Module
Size / Dimension:1.00" L x 0.75" W x 0.36" H (25.4mm x 19.1mm x 9.1mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
