AM1P-0507DZ

AM1P-0507DZ

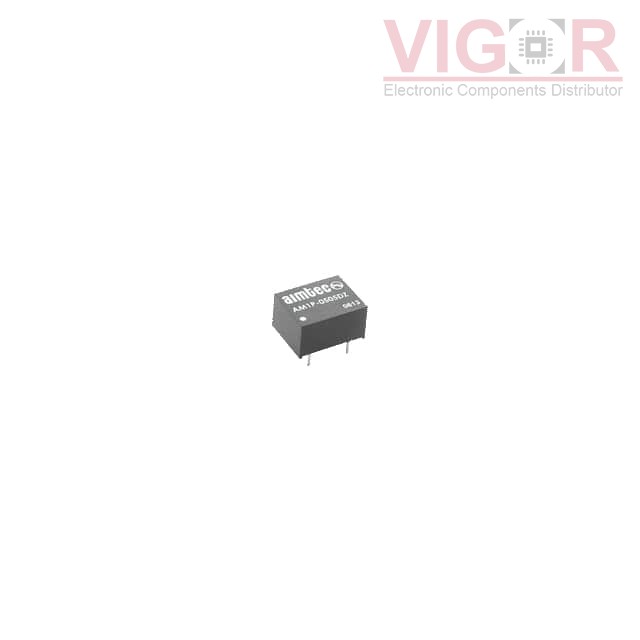

Image is for reference,
please contact us to get the real picture

Part No :

AM1P-0507DZ

Manufacturer
DComponents
Description
DC DC CONVERTER 7.2V -7.2V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
AM1P-0507DZ PDF
Availability
83 pieces
Unit Price
$4.37000

Current price of AM1P-0507DZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1P-0507DZ Specifications
Type Description
Series:AM1P-Z (1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):4.5V
Voltage - Input (Max):5.5V
Voltage - Output 1:7.2V
Voltage - Output 2:-7.2V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):69mA, 69mA
Power (Watts):1 W
Voltage - Isolation:1 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C
Efficiency:77%
Mounting Type:Through Hole
Package / Case:8-DIP Module, 5 Leads
Size / Dimension:0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm)
Supplier Device Package:-
Control Features:-
Approval Agency:CE
Standard Number:-
