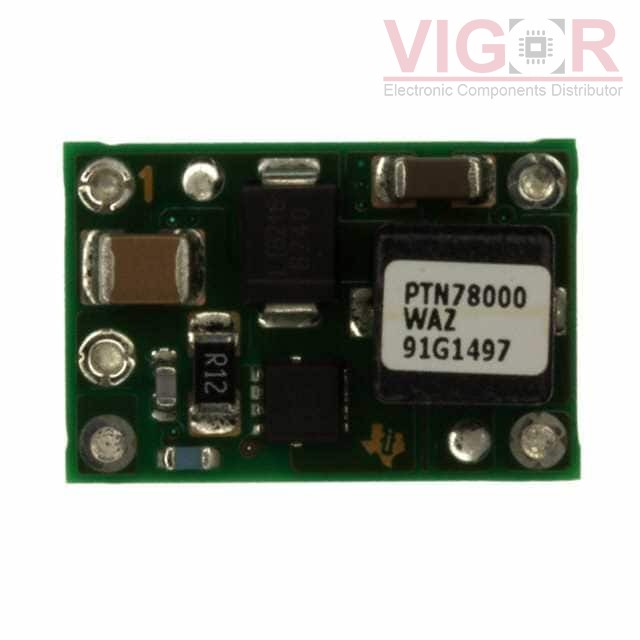

PTN78000WAZT

PTN78000WAZT

Image is for reference,
please contact us to get the real picture

Part No :

PTN78000WAZT

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 2.5-12.6V
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
PTN78000WAZT PDF
Availability
220 pieces
Unit Price
$14.23000

Current price of PTN78000WAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTN78000WAZT Specifications
Type Description
Series:PTN78000W
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):7V
Voltage - Input (Max):36V
Voltage - Output 1:2.5 ~ 12.6V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):1.5A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:OCP, OTP, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:91%
Mounting Type:Surface Mount
Package / Case:5-SMD Module
Size / Dimension:0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
