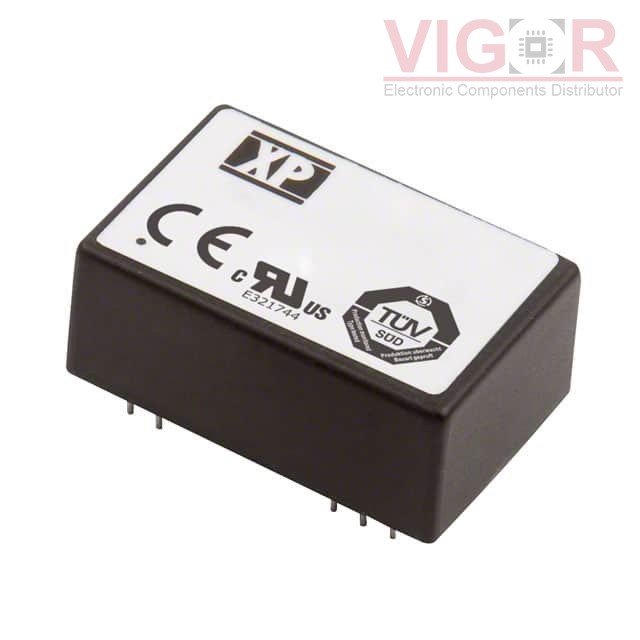

JHM1005D05

Image is for reference,
please contact us to get the real picture

Part No :: JHM1005D05

Manufacturer: XP Power

Description: DC DC CONVERTER +/-5V 10W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: JHM1005D05 PDF

Availability: 723 pieces

Unit Price: ~~$46.06000~~

Current price of JHM1005D05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JHM1005D05 Specifications

Type	Description
Series:	JHM (10W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A, 1A
Power (Watts):	10 W
Voltage - Isolation:	4 kV
Applications:	Medical
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 80°C
Efficiency:	81.5%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 9 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
