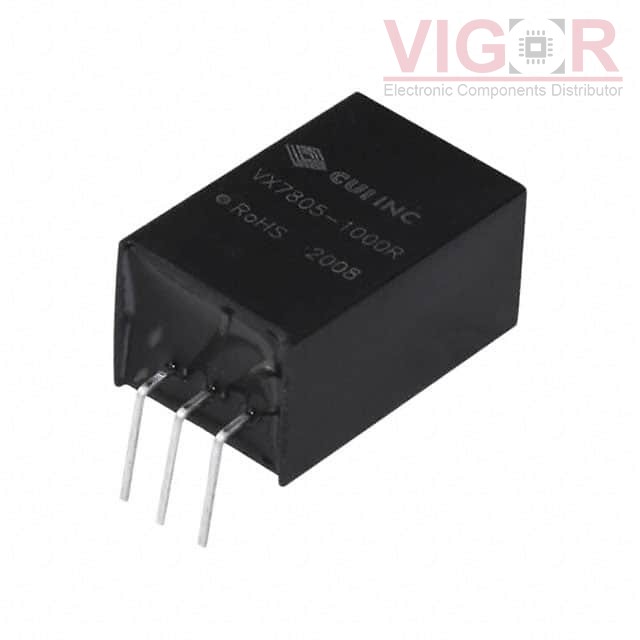

VX7805-1000R

Image is for reference,
please contact us to get the real picture

Part No :: VX7805-1000R

Manufacturer: CUI Inc.

Description: DC DC CONVERTER +/-5V 7.5W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 13 - Aug 17 2025

DataSheet: VX7805-1000R PDF

Availability: 1912 pieces

Unit Price: ~~$6.46000~~

Current price of VX7805-1000R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VX7805-1000R Specifications

Type	Description
Series:	VX78-1000R
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	8V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V, -5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A, 500mA
Power (Watts):	7.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	93%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 60950-1

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

TMV 2-2415DHI

DC DC CONVERTER +/-15V 2W

HOT

MTU2D1212MC-R

DC DC CONVERTER +/-12V 2W

HOT

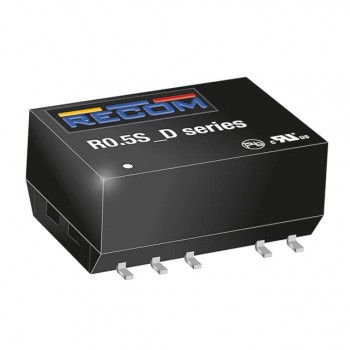

R0.5S12-3.312/HP
