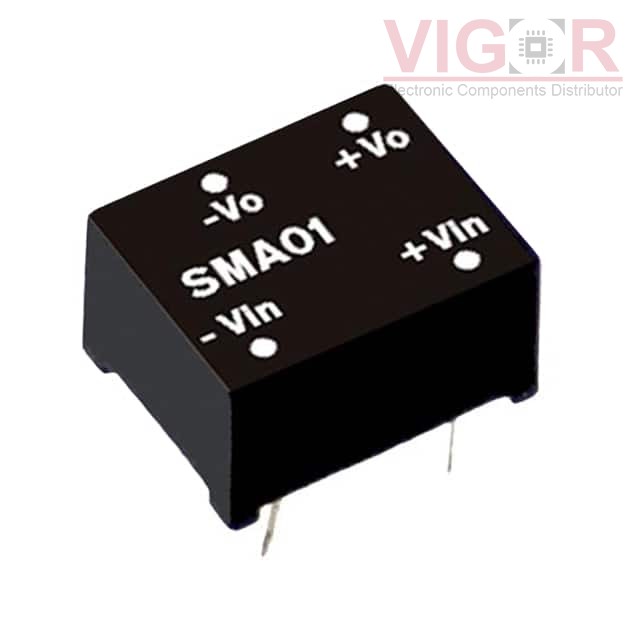

SMA01N-09

Image is for reference,
please contact us to get the real picture

Part No :: SMA01N-09

Manufacturer: MEAN WELL

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: SMA01N-09 PDF

Availability: 72 pieces

Unit Price: ~~$4.73000~~

Current price of SMA01N-09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMA01N-09 Specifications

Type	Description
Series:	SMA01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	110mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, SCP
Operating Temperature:	-40°C ~ 90°C (With Derating)
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.40" W x 0.28" H (12.7mm x 10.2mm x 7.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
