JWK2524D15

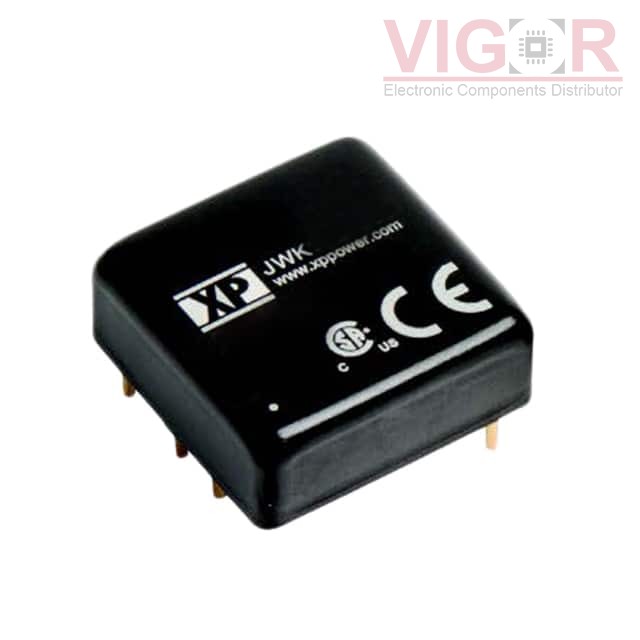

Image is for reference,
please contact us to get the real picture

Part No :: JWK2524D15

Manufacturer: XP Power

Description: DC DC CONVERTER +/-15V 25W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: JWK2524D15 PDF

Availability: 1239 pieces

Unit Price: ~~$50.00000~~

Current price of JWK2524D15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JWK2524D15 Specifications

Type	Description
Series:	JWK25 (25W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	840mA, 840mA
Power (Watts):	25 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP, UVLO
Operating Temperature:	-40°C ~ 105°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Please confirm the specifications of the products when ordering.
