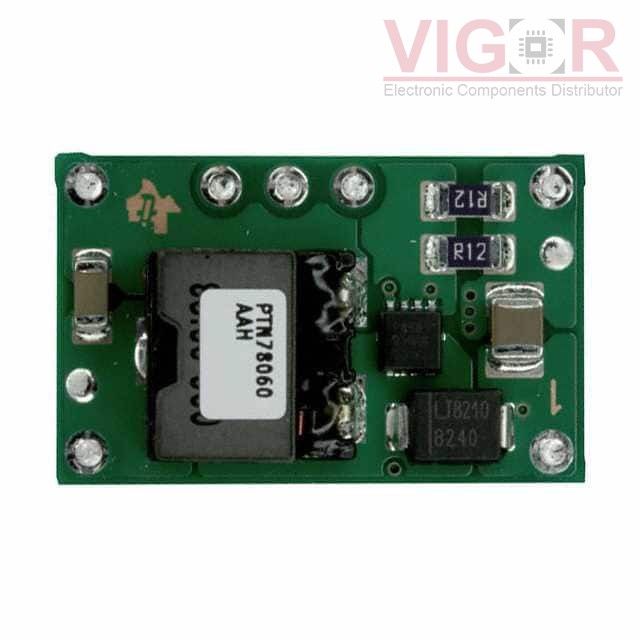

PTN78060AAH

PTN78060AAH

Image is for reference,
please contact us to get the real picture

Part No :

PTN78060AAH

Manufacturer
Texas Instruments
Description
DC DC CONVERTER -15 TO -3V
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
PTN78060AAH PDF
Availability
216 pieces
Unit Price
$25.68000

Current price of PTN78060AAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTN78060AAH Specifications
Type Description
Series:PTN78060A (15W)
Package:Tray
Part Status:Active
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):9V
Voltage - Input (Max):28.7V
Voltage - Output 1:-15 ~ -3V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):3A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:88%
Mounting Type:Through Hole
Package / Case:7-DIP Module
Size / Dimension:1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
