ISM0224D12

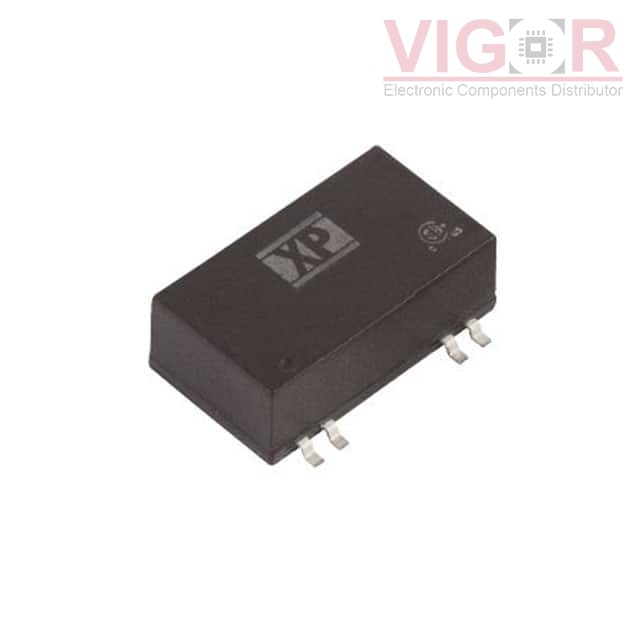

Image is for reference,
please contact us to get the real picture

Part No :: ISM0224D12

Manufacturer: XP Power

Description: DC DC CONVERTER +/-12V 2W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: ISM0224D12 PDF

Availability: 190 pieces

Unit Price: ~~$24.00000~~

Current price of ISM0224D12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISM0224D12 Specifications

Type	Description
Series:	ISM02 (2W)
Package:	Tape & Reel (TR)Cut Tape (CT)Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	83mA, 83mA
Power (Watts):	2 W
Voltage - Isolation:	4 kV
Applications:	ITE (Commercial), Medical
Features:	SCP
Operating Temperature:	-25°C ~ 105°C (With Derating)
Efficiency:	74%
Mounting Type:	Surface Mount
Package / Case:	16-SMD Module, 6 Leads
Size / Dimension:	0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
