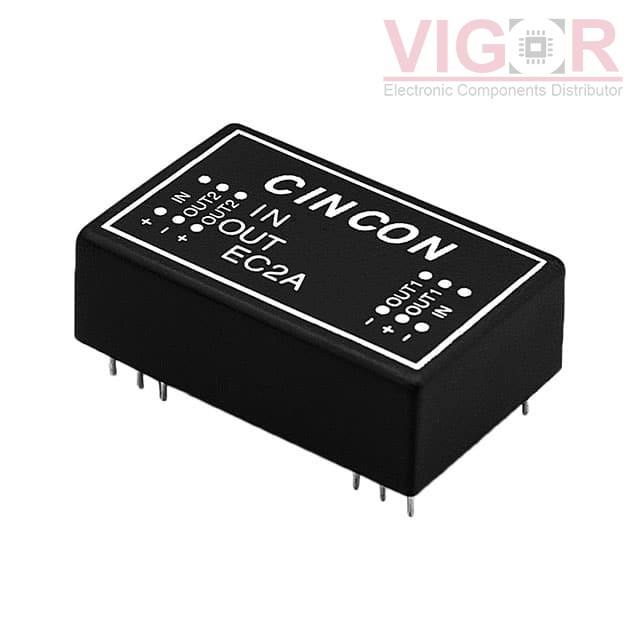

EC2A24M

Image is for reference,
please contact us to get the real picture

Part No :: EC2A24M

Manufacturer: Cincon

Description: DC DC CONVERTER +/-12V 1.5W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: EC2A24M PDF

Availability: 1113 pieces

Unit Price: ~~$8.03600~~

Current price of EC2A24M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EC2A24M Specifications

Type	Description
Series:	EC2A (1.5W)
Package:	Tube
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	60mA, 60mA
Power (Watts):	1.5 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-25°C ~ 71°C
Efficiency:	50%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 14 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
