AM1LR-0505SH30JZTR

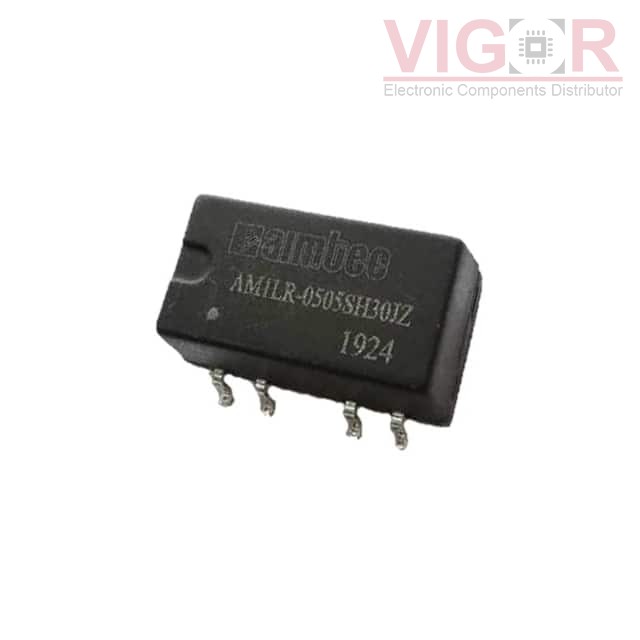

Image is for reference,
please contact us to get the real picture

Part No :

AM1LR-0505SH30JZTR

Manufacturer
DComponents
Description
DC DC CONVERTER 5V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
AM1LR-0505SH30JZTR PDF
Availability
1737 pieces
Unit Price
$4.27000

Current price of AM1LR-0505SH30JZTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:AM1LR-JZ (1W)
Package:Tape & Reel (TR)
Part Status:Active
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):4.75V
Voltage - Input (Max):5.25V
Voltage - Output 1:5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):200mA
Power (Watts):1 W
Voltage - Isolation:3 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:69%
Mounting Type:Surface Mount
Package / Case:10-SMD Module, 6 Leads
Size / Dimension:0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
