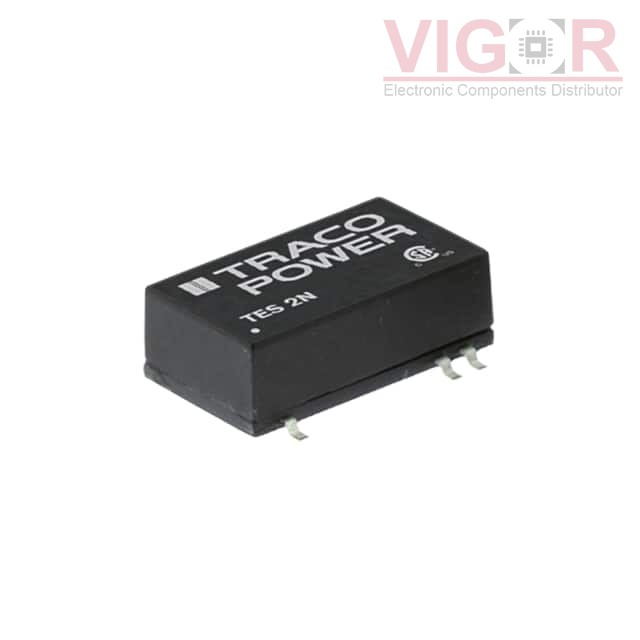

TES 2N-2422

Image is for reference,
please contact us to get the real picture

Part No :: TES 2N-2422

Manufacturer: TRACO Power

Description: DC DC CONVERTER +/-12V 2W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: TES 2N-2422 PDF

Availability: 146 pieces

Unit Price: ~~$23.90000~~

Current price of TES 2N-2422 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TES 2N-2422 Specifications

Type	Description
Series:	TES 2N (2W)
Package:	Tube
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	85mA, 85mA
Power (Watts):	2 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	16-SMD Module, 6 Leads
Size / Dimension:	0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
