IMM0524D12

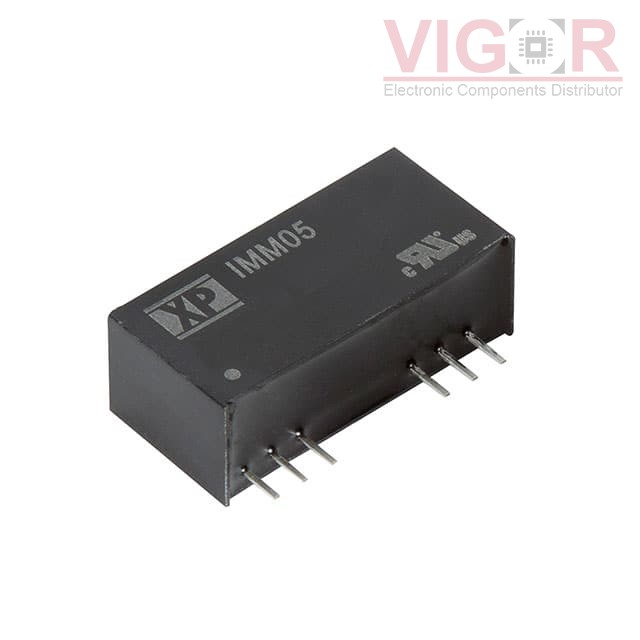

Image is for reference,
please contact us to get the real picture

Part No :: IMM0524D12

Manufacturer: XP Power

Description: DC DC CONVERTER +/-12V 5W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 21 - Aug 25 2025

DataSheet: IMM0524D12 PDF

Availability: 1503 pieces

Unit Price: ~~$22.00000~~

Current price of IMM0524D12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMM0524D12 Specifications

Type	Description
Series:	IMM05 (5W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	208mA, 208mA
Power (Watts):	5 W
Voltage - Isolation:	1.5 kV
Applications:	Medical
Features:	Remote On/Off, OCP, SCP
Operating Temperature:	-20°C ~ 100°C (With Derating)
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	9-SIP Module, 6 Leads
Size / Dimension:	1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB, CSA, TUV, UL
Standard Number:	-
