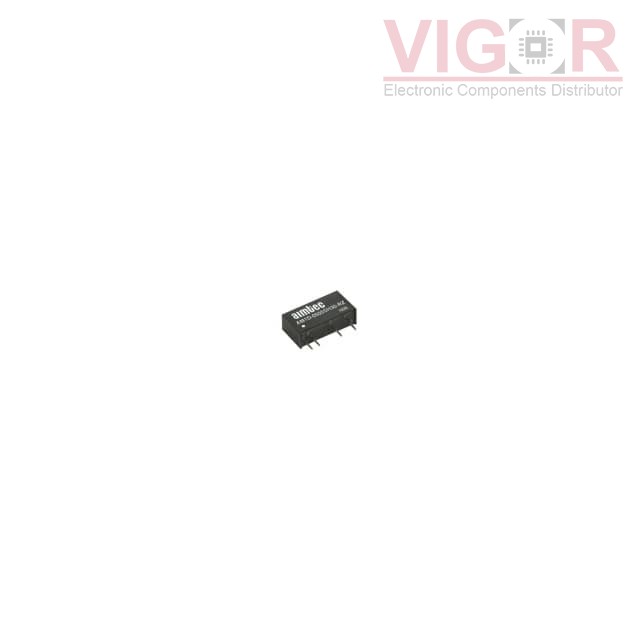

AM1D-0509SH30-RZ

Image is for reference,
please contact us to get the real picture

Part No :: AM1D-0509SH30-RZ

Manufacturer: DComponents

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: AM1D-0509SH30-RZ PDF

Availability: 727 pieces

Unit Price: ~~$4.60000~~

Current price of AM1D-0509SH30-RZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1D-0509SH30-RZ Specifications

Type	Description
Series:	AM1D-RZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-
