PCN1-S12-D15-M

PCN1-S12-D15-M

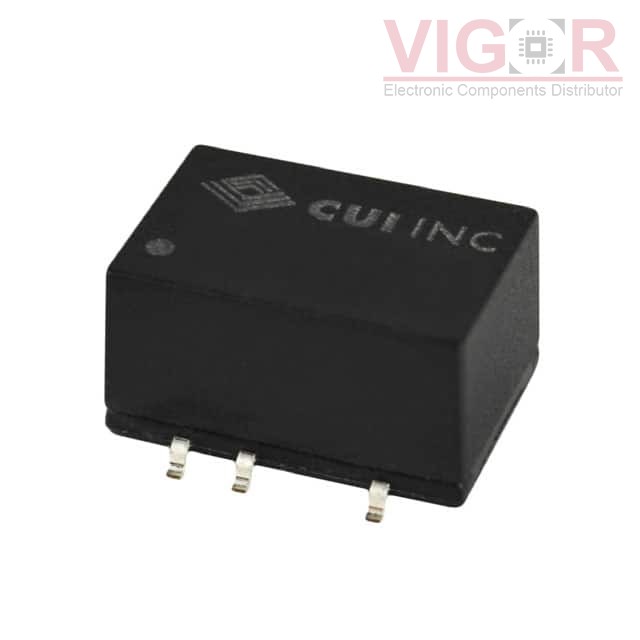

Image is for reference,
please contact us to get the real picture

Part No :

PCN1-S12-D15-M

Manufacturer
CUI Inc.
Description
DC DC CONVERTER +/-15V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
PCN1-S12-D15-M PDF
Availability
954 pieces
Unit Price
$4.24500

Current price of PCN1-S12-D15-M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCN1-S12-D15-M Specifications
Type Description
Series:PCN1-M (1W)
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):10.8V
Voltage - Input (Max):13.2V
Voltage - Output 1:15V
Voltage - Output 2:-15V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):33mA, 33mA
Power (Watts):1 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:SCP
Operating Temperature:-40°C ~ 100°C
Efficiency:81%
Mounting Type:Surface Mount
Package / Case:10-SMD Module, 5 Leads
Size / Dimension:0.64" L x 0.39" W x 0.29" H (16.2mm x 9.8mm x 7.4mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
