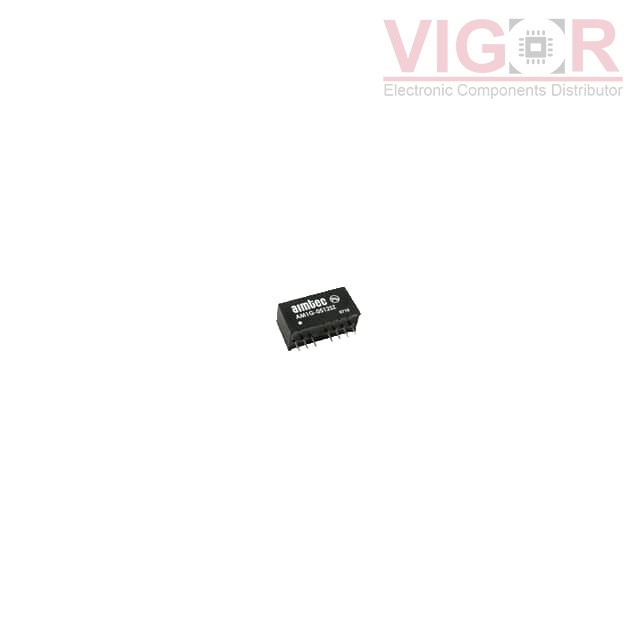

AM1G-0503SH30Z

Image is for reference,
please contact us to get the real picture

Part No :: AM1G-0503SH30Z

Manufacturer: DComponents

Description: DC DC CONVERTER 3.3V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: AM1G-0503SH30Z PDF

Availability: 745 pieces

Unit Price: ~~$9.07000~~

Current price of AM1G-0503SH30Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1G-0503SH30Z Specifications

Type	Description
Series:	AM1G-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	303mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 85°C
Efficiency:	67%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cURus, UL
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

V24A5M400BL

DC DC CONVERTER 5V 400W

HOT

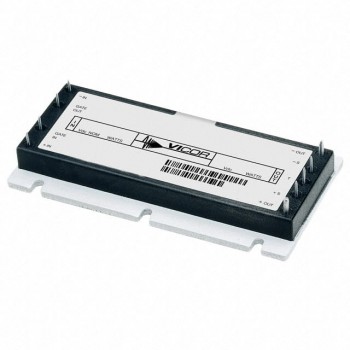

VI-2N4-MW-S
