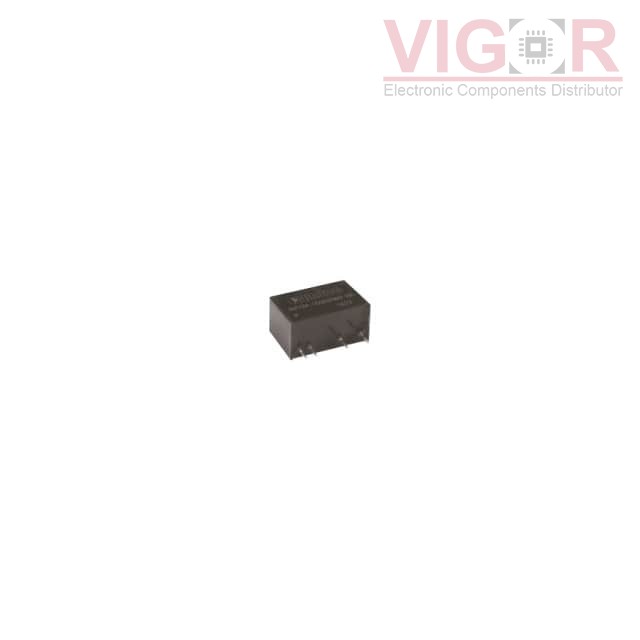

AM1DM-0515DH60-NZ

Image is for reference,
please contact us to get the real picture

Part No :: AM1DM-0515DH60-NZ

Manufacturer: DComponents

Description: DC DC CONVERTER +/-15V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: AM1DM-0515DH60-NZ PDF

Availability: 1243 pieces

Unit Price: ~~$5.05000~~

Current price of AM1DM-0515DH60-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1DM-0515DH60-NZ Specifications

Type	Description
Series:	AM1DM-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	34mA, 34mA
Power (Watts):	1 W
Voltage - Isolation:	6 kV
Applications:	Medical
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	76%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.39" W x 0.51" H (19.5mm x 9.8mm x 13.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cURus
Standard Number:	-
