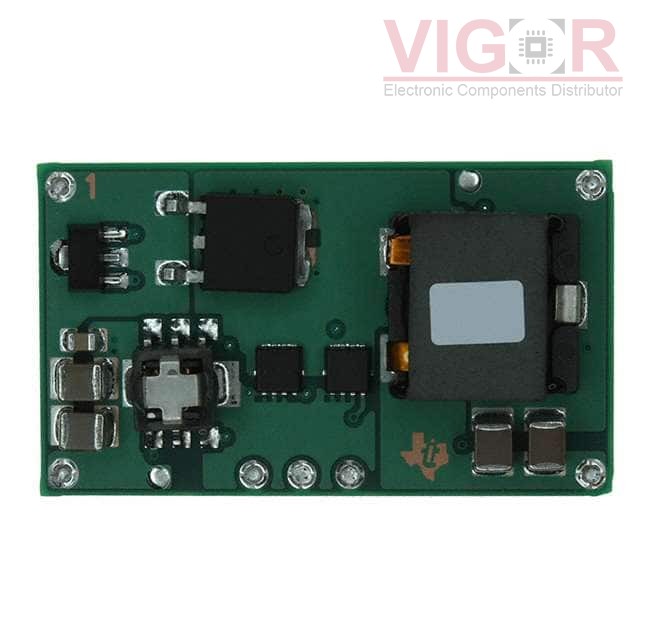

PTN78020AAH

Image is for reference,
please contact us to get the real picture

Part No :: PTN78020AAH

Manufacturer: Texas Instruments

Description: DC DC CONVERTER -15 TO -3V

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 15 - Aug 19 2025

DataSheet: PTN78020AAH PDF

Availability: 1564 pieces

Unit Price: ~~$27.50000~~

Current price of PTN78020AAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTN78020AAH Specifications

Type	Description
Series:	PTN78020A (25W)
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	29V
Voltage - Output 1:	-15 ~ -3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	4A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module
Size / Dimension:	1.50" L x 0.87" W x 0.36" H (38.1mm x 22.1mm x 9.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
