AM1LS-0524D-NZTR

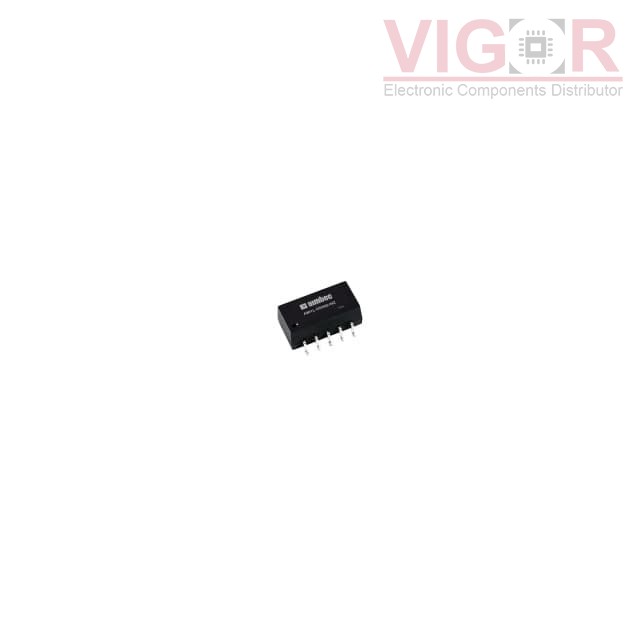

Image is for reference,
please contact us to get the real picture

Part No :: AM1LS-0524D-NZTR

Manufacturer: DComponents

Description: DC DC CONVERTER +/-24V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: AM1LS-0524D-NZTR PDF

Availability: 1105 pieces

Unit Price: ~~$3.38000~~

Current price of AM1LS-0524D-NZTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1LS-0524D-NZTR Specifications

Type	Description
Series:	AM1LS-NZ (1W)
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	24V
Voltage - Output 2:	-24V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	21mA, 21mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	85%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	cULus, cURus
Standard Number:	-
