DCV010505DP

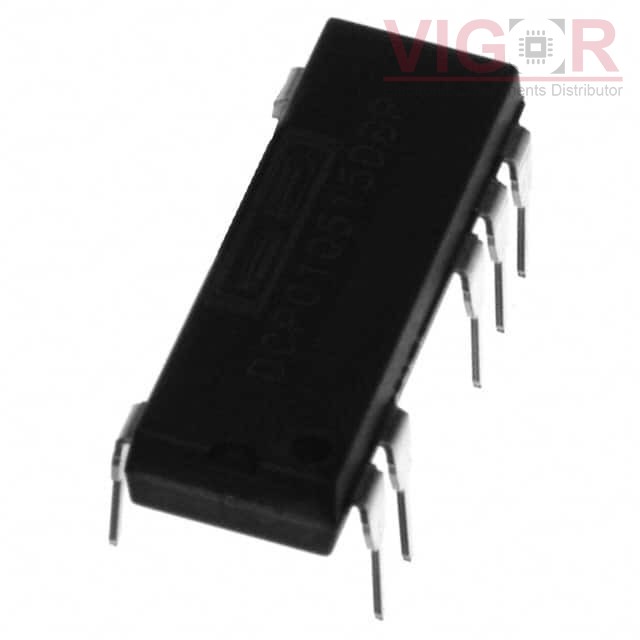

Image is for reference,
please contact us to get the real picture

Part No :: DCV010505DP

Manufacturer: Texas Instruments

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: DCV010505DP PDF

Availability: 708 pieces

Unit Price: ~~$10.01000~~

Current price of DCV010505DP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DCV010505DP Specifications

Type	Description
Series:	DCV01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	14-DIP (0.300", 7.62mm), 7 Leads
Size / Dimension:	0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Supplier Device Package:	7-PDIP
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
