JCB0305D24

JCB0305D24

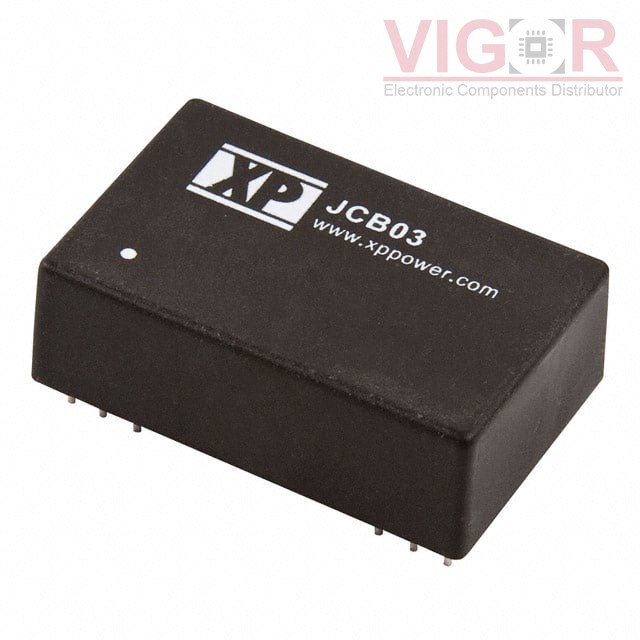

Image is for reference,
please contact us to get the real picture

Part No :

JCB0305D24

Manufacturer
XP Power
Description
DC DC CONVERTER +/-24V 3W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
JCB0305D24 PDF
Availability
1026 pieces
Unit Price
$13.39500

Current price of JCB0305D24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JCB0305D24 Specifications
Type Description
Series:JCB (3W)
Package:Bulk
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):4.5V
Voltage - Input (Max):9V
Voltage - Output 1:24V
Voltage - Output 2:-24V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):63mA, 63mA
Power (Watts):3 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:OCP, OVP, SCP, UVLO
Operating Temperature:-40°C ~ 100°C (With Derating)
Efficiency:70%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 14 Leads
Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
