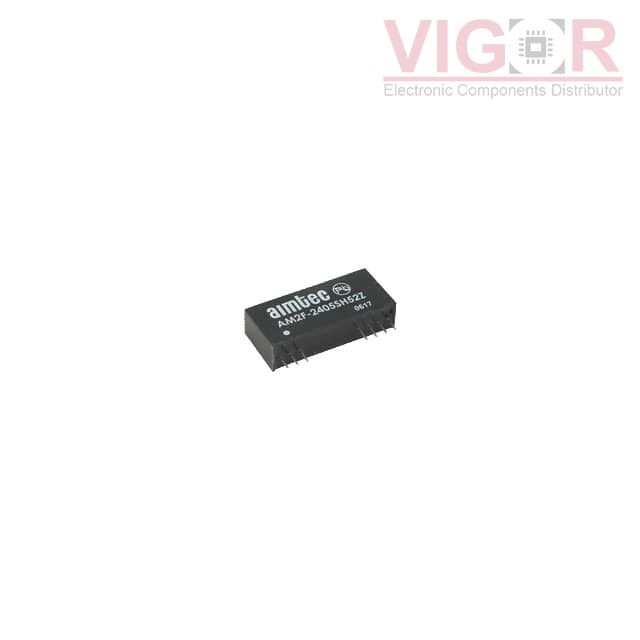

AM2F-2409SH52Z

Image is for reference,
please contact us to get the real picture

Part No :: AM2F-2409SH52Z

Manufacturer: DComponents

Description: DC DC CONVERTER 9V 2W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: AM2F-2409SH52Z PDF

Availability: 638 pieces

Unit Price: ~~$11.61000~~

Current price of AM2F-2409SH52Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM2F-2409SH52Z Specifications

Type	Description
Series:	AM2F-Z (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	222mA
Power (Watts):	2 W
Voltage - Isolation:	5.2 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 71°C (With Derating)
Efficiency:	71%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module, 7 Leads
Size / Dimension:	1.26" L x 0.32" W x 0.55" H (32.0mm x 8.0mm x 14.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
