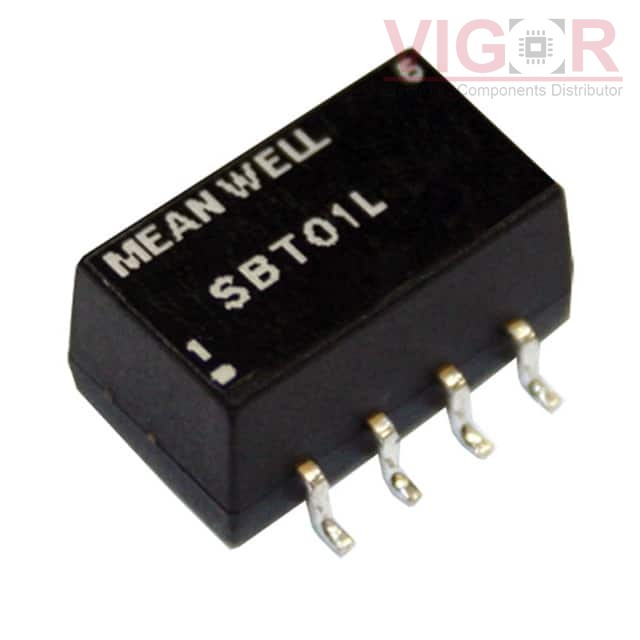

SBT01L-05

Image is for reference,
please contact us to get the real picture

Part No :: SBT01L-05

Manufacturer: MEAN WELL

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: SBT01L-05 PDF

Availability: 908 pieces

Unit Price: ~~$4.15000~~

Current price of SBT01L-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBT01L-05 Specifications

Type	Description
Series:	SBT01 (1W)
Package:	-
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	OCP, SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	70%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module
Size / Dimension:	0.50" L x 0.30" W x 0.25" H (12.7mm x 7.5mm x 6.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
