AM3T-0505D-PNZ

AM3T-0505D-PNZ

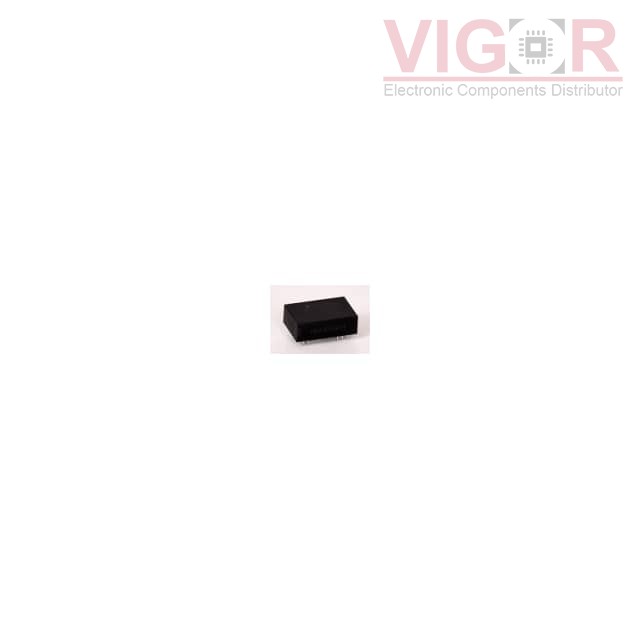

Image is for reference,
please contact us to get the real picture

Part No :

AM3T-0505D-PNZ

Manufacturer
DComponents
Description
DC DC CONVERTER 5V -5V 3W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
AM3T-0505D-PNZ PDF
Availability
435 pieces
Unit Price
$12.11000

Current price of AM3T-0505D-PNZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM3T-0505D-PNZ Specifications
Type Description
Series:AM3T-PNZ (3W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):4.5V
Voltage - Input (Max):9V
Voltage - Output 1:5V
Voltage - Output 2:-5V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):300mA, 300mA
Power (Watts):3 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C
Efficiency:76%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 10 Leads
Size / Dimension:1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
