K7809MT-500R4

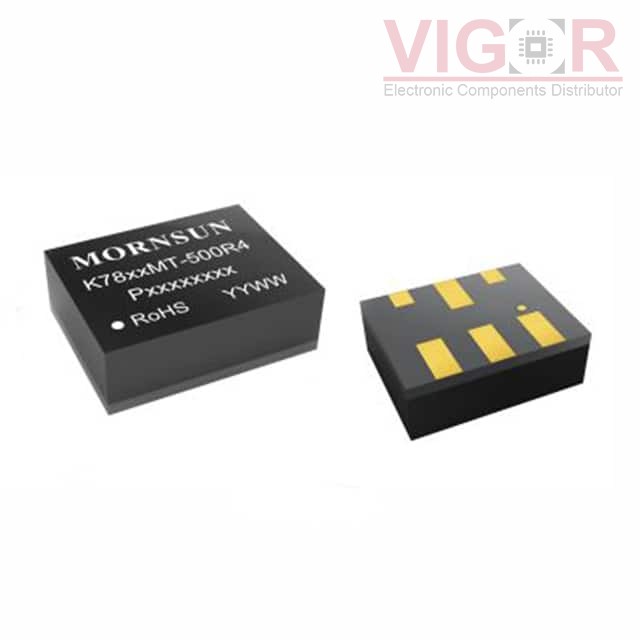

Image is for reference,
please contact us to get the real picture

Part No :: K7809MT-500R4

Manufacturer: Mornsun

Description: DC DC CONVERTER +/-9V 6.3W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 23 - Jul 27 2025

DataSheet: K7809MT-500R4 PDF

Availability: 833 pieces

Unit Price: ~~$1.07000~~

Current price of K7809MT-500R4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

K7809MT-500R4 Specifications

Type	Description
Series:	K7809MT-500R4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	2
Voltage - Input (Min):	8V, 12V
Voltage - Input (Max):	27V, 36V
Voltage - Output 1:	9V
Voltage - Output 2:	-9V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA, 200mA
Power (Watts):	6.3 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 105°C
Efficiency:	92%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Please confirm the specifications of the products when ordering.
