AM75QB-4848SH22-NZ-192

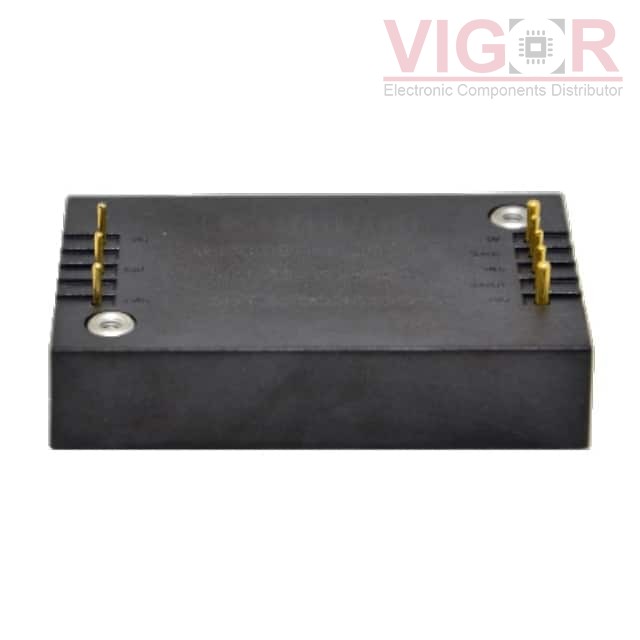

Image is for reference,
please contact us to get the real picture

Part No :: AM75QB-4848SH22-NZ-192

Manufacturer: DComponents

Description: DC DC CONVERTER 48V 75W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 13 - Aug 17 2025

DataSheet: AM75QB-4848SH22-NZ-192 PDF

Availability: 512 pieces

Unit Price: ~~$85.47000~~

Current price of AM75QB-4848SH22-NZ-192 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM75QB-4848SH22-NZ-192 Specifications

Type	Description
Series:	AM75QB-NZ (75W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	48V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.56A
Power (Watts):	75 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	92%
Mounting Type:	Through Hole
Package / Case:	Quarter Brick
Size / Dimension:	2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm)
Supplier Device Package:	Quarter Brick
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Please confirm the specifications of the products when ordering.
