JCD0548D09

JCD0548D09

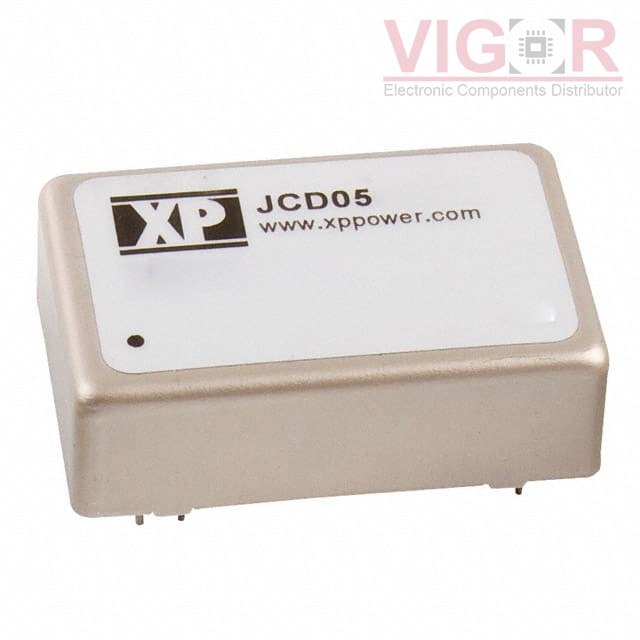

Image is for reference,
please contact us to get the real picture

Part No :

JCD0548D09

Manufacturer
XP Power
Description
DC DC CONVERTER +/-9V 5W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
JCD0548D09 PDF
Availability
1078 pieces
Unit Price
$19.50500

Current price of JCD0548D09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JCD0548D09 Specifications
Type Description
Series:JCD (5W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):36V
Voltage - Input (Max):72V
Voltage - Output 1:9V
Voltage - Output 2:-9V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):278mA
Power (Watts):5 W
Voltage - Isolation:1.6 kV
Applications:ITE (Commercial)
Features:OCP, OVP, SCP
Operating Temperature:-40°C ~ 100°C
Efficiency:82%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 8 Leads
Size / Dimension:1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:62368-1
