PT5814A

PT5814A

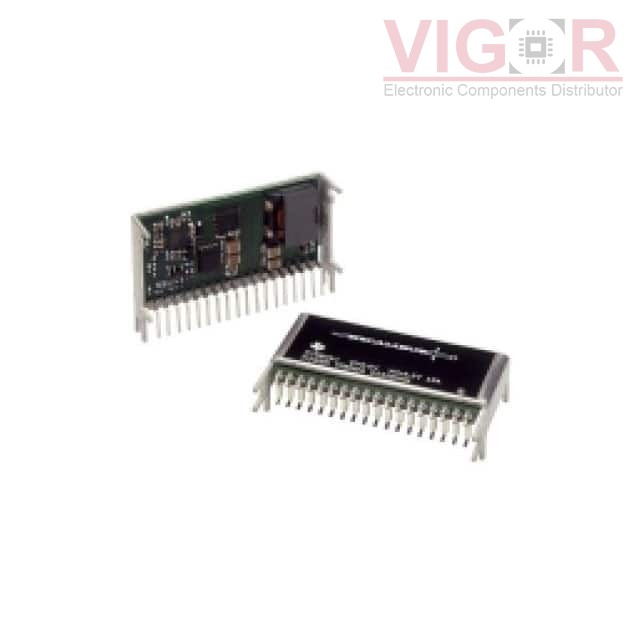

Image is for reference,
please contact us to get the real picture

Part No :

PT5814A

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 1.5V
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
PT5814A PDF
Availability
1602 pieces
Unit Price
$0.00000

Current price of PT5814A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT5814A Specifications
Type Description
Series:Excalibur™ PT5810
Package:Tray
Part Status:Obsolete
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):2.95V
Voltage - Input (Max):3.65V
Voltage - Output 1:1.5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):20A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C
Efficiency:89%
Mounting Type:Through Hole, Right Angle
Package / Case:18-SIP Module
Size / Dimension:-
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
