PT5545A

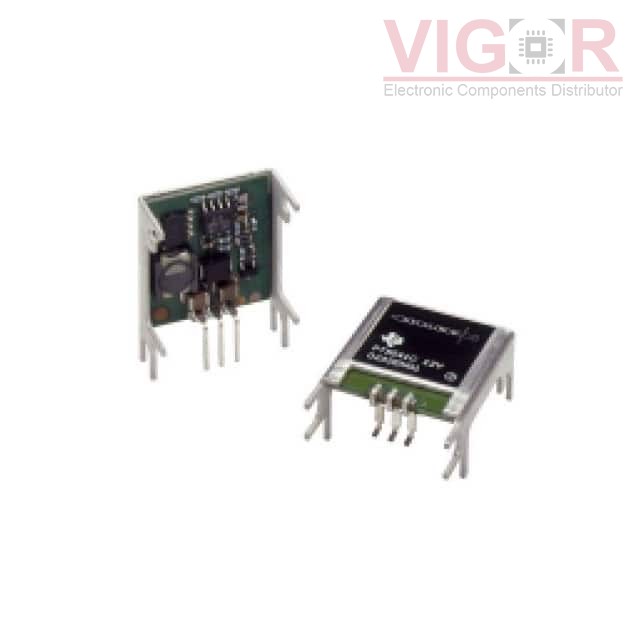

Image is for reference,
please contact us to get the real picture

Part No :: PT5545A

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 9V

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 23 - Aug 27 2025

DataSheet: PT5545A PDF

Availability: 1048 pieces

Unit Price: ~~$0.00000~~

Current price of PT5545A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT5545A Specifications

Type	Description
Series:	Excalibur™ PT5540 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	8V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
