PT4685N

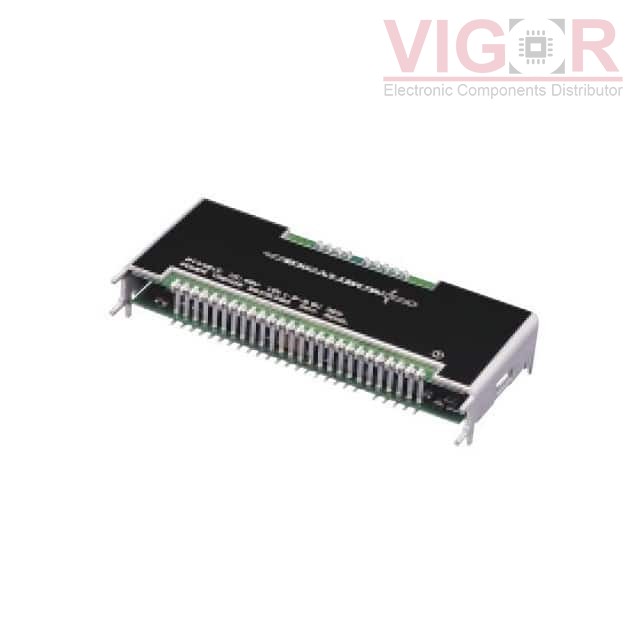

Image is for reference,
please contact us to get the real picture

Part No :: PT4685N

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 3.3V 1.5V 49W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: PT4685N PDF

Availability: 1529 pieces

Unit Price: ~~$0.00000~~

Current price of PT4685N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT4685N Specifications

Type	Description
Series:	Excalibur™ PT4680
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	1.5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A, 15A
Power (Watts):	49 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	26-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
