Type | Description |
---|---|
Series: | NXT-400 (400W) |
Package: | Box |
Part Status: | Active |
Type: | Open Frame |
Number of Outputs: | 4 |
Voltage - Input: | 100 ~ 240 VAC |
Voltage - Output 1: | 5V |
Voltage - Output 2: | 12V |
Voltage - Output 3: | 15V |
Voltage - Output 4: | -15V |
Current - Output (Max): | 50A, 10A, 5A, 5A |
Power (Watts): | 400W |
Applications: | ITE (Commercial), Medical |
Voltage - Isolation: | - |
Efficiency: | 87% |
Operating Temperature: | -20°C ~ 70°C (With Derating) |
Features: | Adjustable Output, Remote Sense, Universal Input |
Mounting Type: | Chassis Mount |
Size / Dimension: | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.0mm) |
Approval Agency: | CE, cURus, TUV |
Standard Number: | 60601-1; 62368-1 |

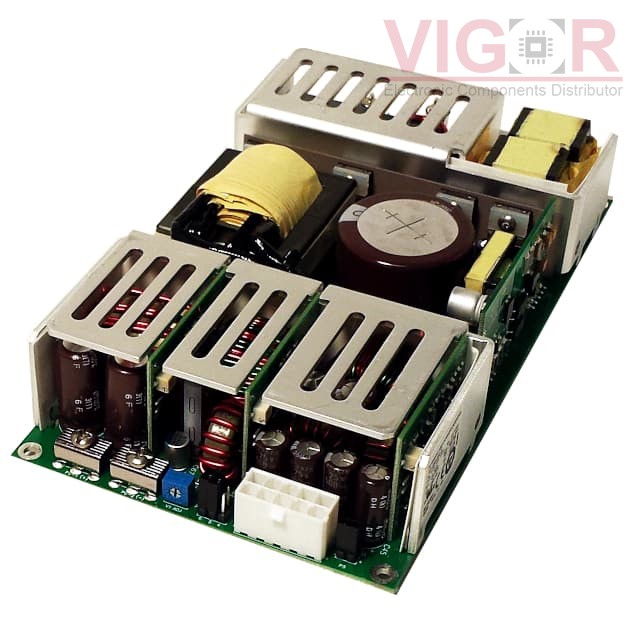

AC/DC CONV 5V/12V +/-15V 400W
