Type | Description |
---|---|
Series: | SDI30-U (30W) |
Package: | Box |
Part Status: | Active |
Region Utilized: | North America |
Form: | Desktop (Class I) |
Input Type: | Cord |
Voltage - Input: | 90 ~ 264 VAC |
Voltage - Output: | 12V |
Current - Output (Max): | 2.5A |
Power (Watts): | 30 W |
No Load Power Consumption: | 75mW (Max) |
Polarization: | Positive Center |
Applications: | ITE (Commercial) |
Efficiency: | Level VI |
Operating Temperature: | 0°C ~ 40°C |
Output Connector: | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
Cord Length: | 60.2" (1.53m) |
Input Connector: | IEC 320-C14 |
Size / Dimension: | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) |
Approval Agency: | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL |
Standard Number: | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3 |

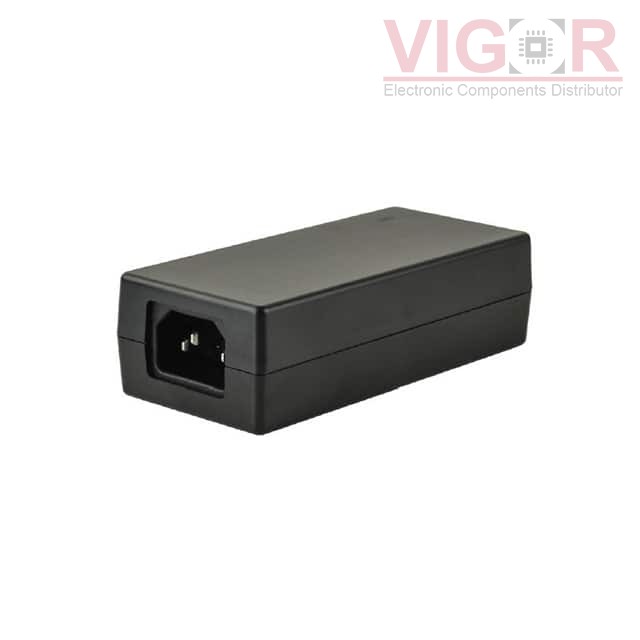

AC/DC DESKTOP ADAPTER 12V 30W
