1011536

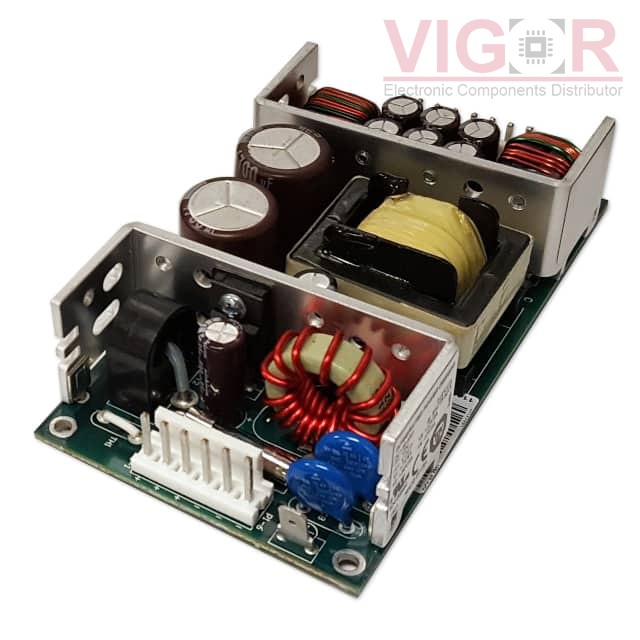

Image is for reference,
please contact us to get the real picture

Part No :: 1011536

Manufacturer: Integrated Power Designs

Description: DC/DC CONV 5V 3.3V 12V -12V 80W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: 1011536 PDF

Availability: 1 pieces

Unit Price: ~~$111.91000~~

Current price of 1011536 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1011536 Specifications

Type	Description
Series:	DC1-80 (80W)
Package:	Box
Part Status:	Active
Type:	Open Frame
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Number of Outputs:	4
Voltage - Output 1:	5V
Voltage - Output 2:	3.3V
Voltage - Output 3:	12V
Voltage - Output 4:	-12V
Current - Output (Max):	6A, 5A, 2A, 2A
Power (Watts):	80W
Voltage - Isolation:	-
Applications:	ITE (Commercial), Medical
Efficiency:	82%
Operating Temperature:	0°C ~ 70°C (With Derating)
Mounting Type:	Chassis Mount
Size / Dimension:	4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm)
Approval Agency:	CE, cURus, TUV
Standard Number:	60601-1; 62368-1

Please confirm the specifications of the products when ordering.
