CN0020

CN0020

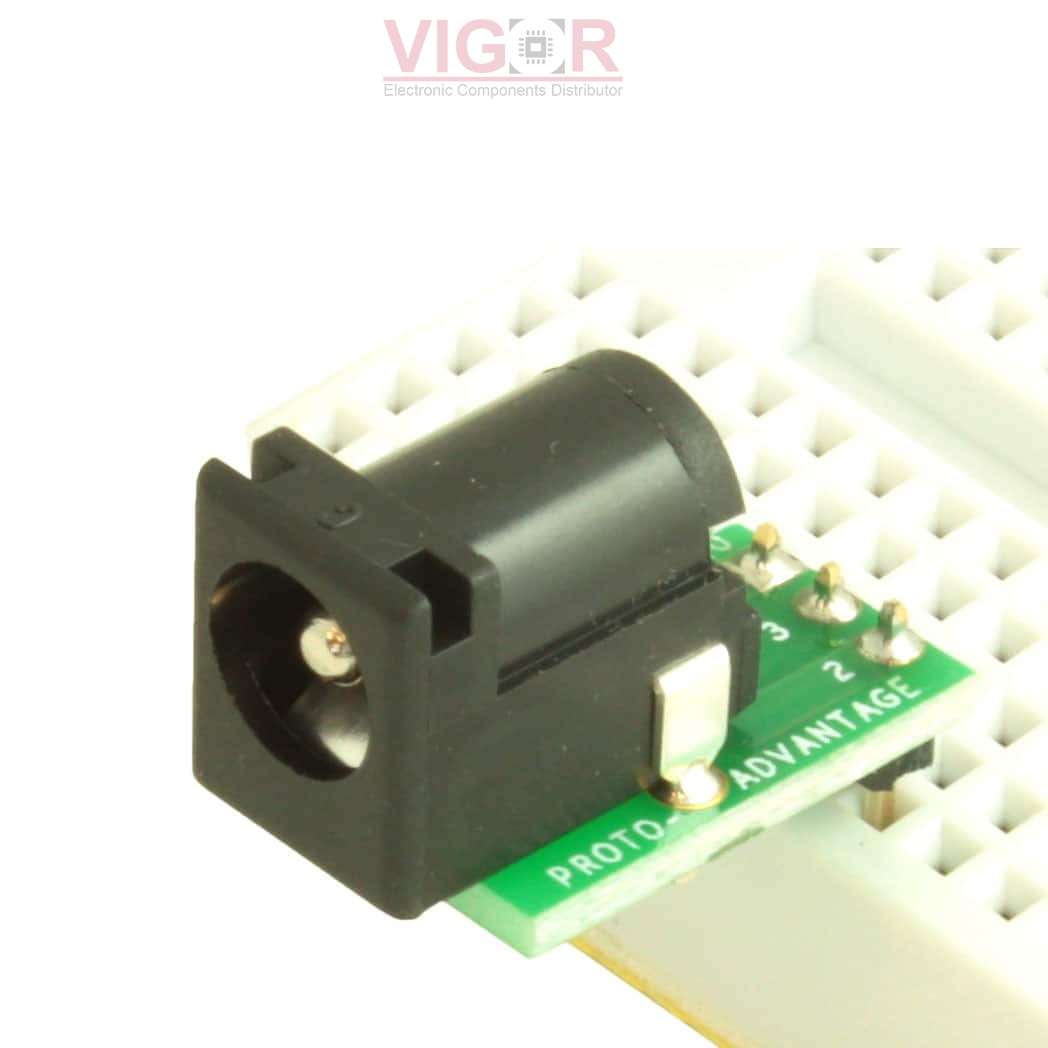

Image is for reference,
please contact us to get the real picture

Part No :

CN0020

Manufacturer
Chip Quik, Inc.
Description
JACK 2.5MM ID, 5.5MM OD ADAPTER
Catalog
Adapter, Breakout Boards
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
CN0020 PDF
Availability
56 pieces
Unit Price
$5.29000

Current price of CN0020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CN0020 Specifications
Type Description
Series:Proto-Advantage
Package:Bulk
Part Status:Active
Proto Board Type:Connector to SIP
Package Accepted:2.5mm ID, 5.5mm OD Plug
Number of Positions:3
Pitch:0.098" (2.50mm)
Board Thickness:0.062" (1.57mm) 1/16"
Material:FR4 Epoxy Glass
Size / Dimension:0.700" x 0.400" (17.78mm x 10.16mm)
