3682-4

3682-4

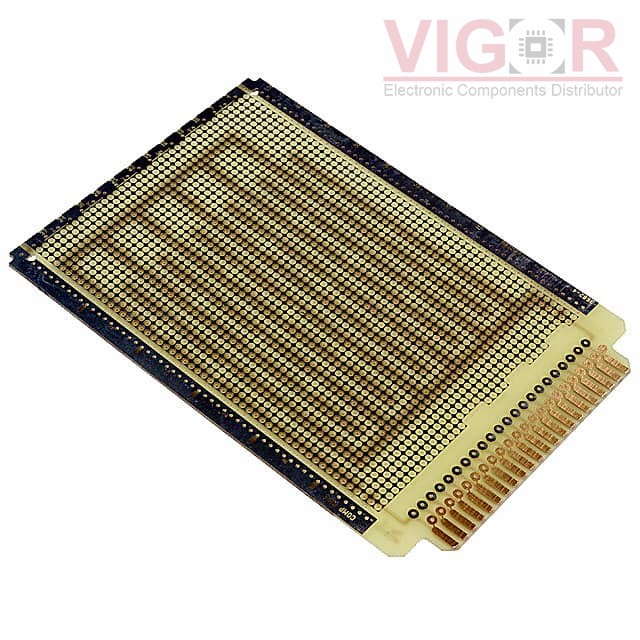

Image is for reference,
please contact us to get the real picture

Part No :

3682-4

Manufacturer
Vector Electronics & Technology, Inc.
Description
PLUGBOARD CARD EDGE NPTH
Catalog
Prototype Boards Perforated
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
3682-4 PDF
Availability
1 pieces
Unit Price
$24.39000

Current price of 3682-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3682-4 Specifications
Type Description
Series:Vectorbord® Plugbord™
Package:Bulk
Part Status:Active
Proto Board Type:Plugboard, Card Edge
Plating:Non-Plated Through Hole (NPTH)
Pitch:0.100" (2.54mm)
Circuit Pattern:Pad Per Hole (Round), Ground Plane
Edge Contacts:44 @ 0.156" (3.96mm)
Hole Diameter:0.042" (1.07mm)
Size / Dimension:6.50" L x 4.50" W (165.1mm x 114.3mm)
Board Thickness:0.062" (1.57mm) 1/16"
