CB1AH-T-P-24V

CB1AH-T-P-24V

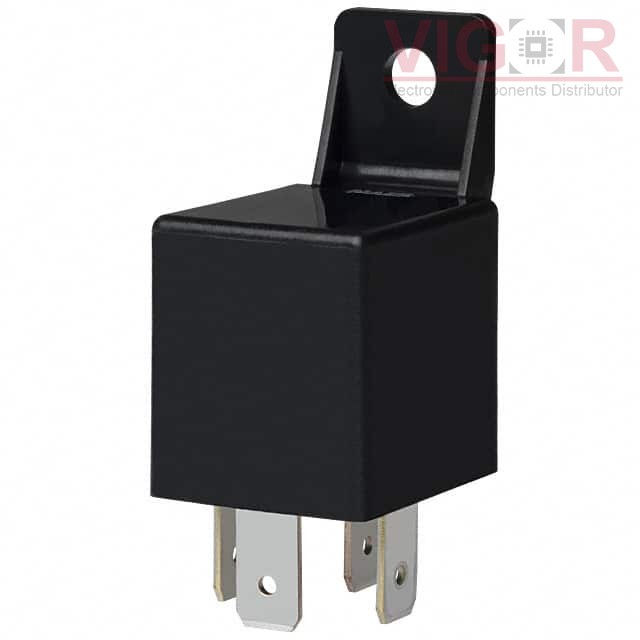

Image is for reference,
please contact us to get the real picture

Part No :

CB1AH-T-P-24V

Manufacturer
Panasonic
Description
CB RELAY HR 1 FORM A 24V
Catalog
Automotive Relays
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
CB1AH-T-P-24V PDF
Availability
55 pieces
Unit Price
$9.22000

Current price of CB1AH-T-P-24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CB1AH-T-P-24V Specifications
Type Description
Series:CB
Package:Tube
Part Status:Active
Coil Type:Non Latching
Coil Current:58 mA
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):20 A
Switching Voltage:28VDC - Nom
Must Operate Voltage:14 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:15 ms
Features:Sealed - Fully
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 125°C
