CP1SA-12V-X

CP1SA-12V-X

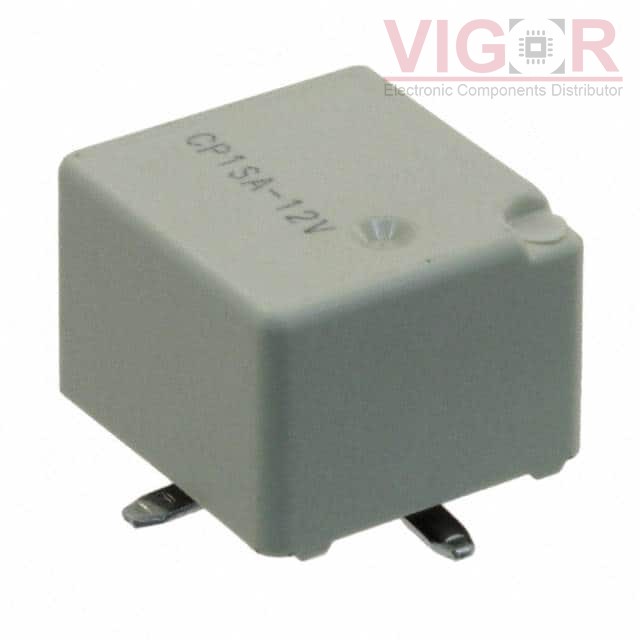

Image is for reference,
please contact us to get the real picture

Part No :

CP1SA-12V-X

Manufacturer
Panasonic
Description
RELAY AUTOMOTIVE SPDT 20A 12V
Catalog
Automotive Relays
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
CP1SA-12V-X PDF
Availability
0 pieces
Unit Price
$3.89000

Current price of CP1SA-12V-X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CP1SA-12V-X Specifications
Type Description
Series:CP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Coil Type:Non Latching
Coil Current:53.3 mA
Coil Voltage:12VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:14VDC - Nom
Must Operate Voltage:7.2 VDC
Must Release Voltage:1 VDC
Operate Time:10 ms
Release Time:10 ms
Features:Sealed - Fully
Mounting Type:Surface Mount
Termination Style:Gull Wing
Operating Temperature:-40°C ~ 85°C
