CB1F-T-D-P-24V

CB1F-T-D-P-24V

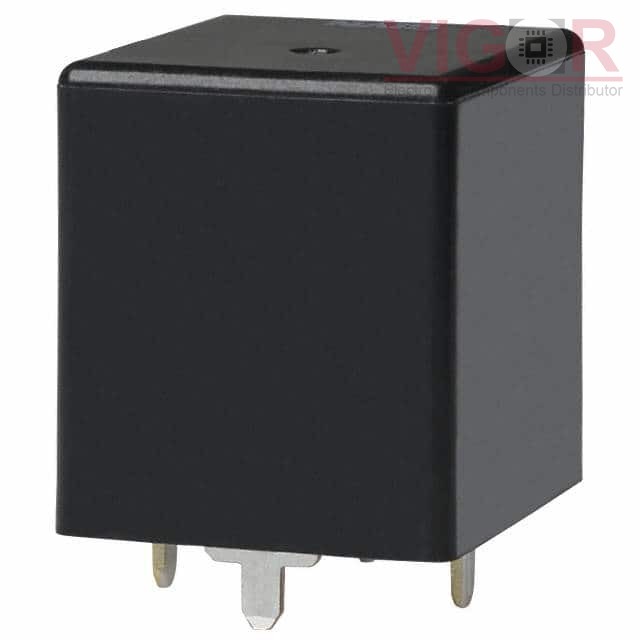

Image is for reference,
please contact us to get the real picture

Part No :

CB1F-T-D-P-24V

Manufacturer
Panasonic
Description
RELAY AUTOMOTIVE SPDT 20A 24V
Catalog
Automotive Relays
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
CB1F-T-D-P-24V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CB1F-T-D-P-24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CB1F-T-D-P-24V Specifications
Type Description
Series:CB
Package:Bulk
Part Status:Obsolete
Coil Type:Non Latching
Coil Current:75 mA
Coil Voltage:24VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:28VDC - Nom
Must Operate Voltage:14 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:-
Features:Diode, Sealed - Flux Protection
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 125°C
