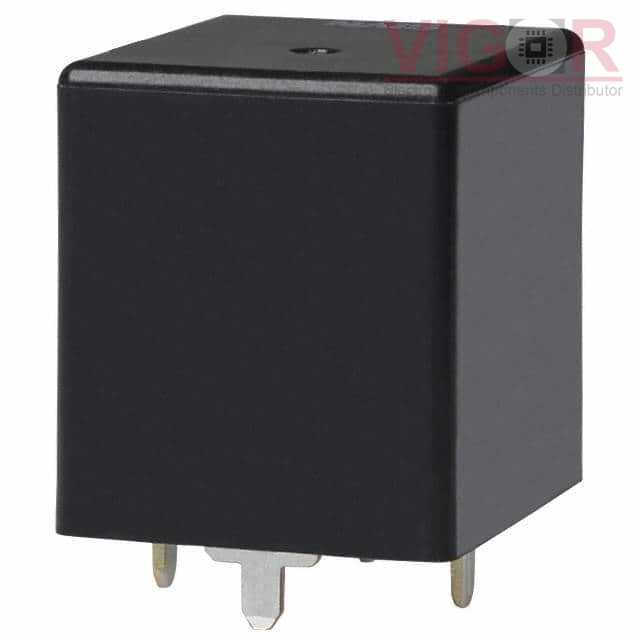

CB1F-D-P-24V

CB1F-D-P-24V

Image is for reference,
please contact us to get the real picture

Part No :

CB1F-D-P-24V

Manufacturer
Panasonic
Description
RELAY AUTOMOTIVE SPDT 20A 24V
Catalog
Automotive Relays
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
CB1F-D-P-24V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CB1F-D-P-24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CB1F-D-P-24V Specifications
Type Description
Series:CB
Package:Bulk
Part Status:Obsolete
Coil Type:Non Latching
Coil Current:75 mA
Coil Voltage:24VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:28VDC - Nom
Must Operate Voltage:14 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:-
Features:Diode, Sealed - Flux Protection
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

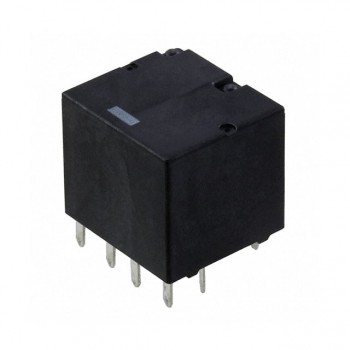

HOT G8NW-2 DC12

G8NW-2 DC12

RELAY AUTOMOTIVE SPDT 30A 12V

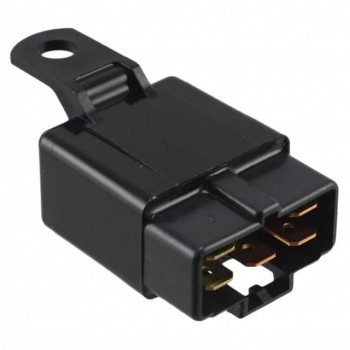

HOT CA1A-DC24V-N

CA1A-DC24V-N

RELAY AUTOMOTIVE SPST 10A 24V

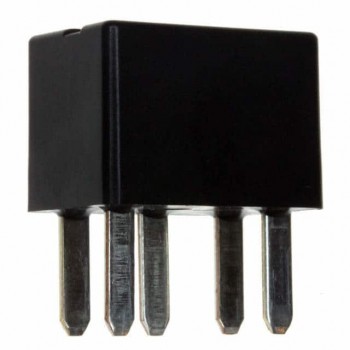

HOT ACV13112
