ARE1309

ARE1309

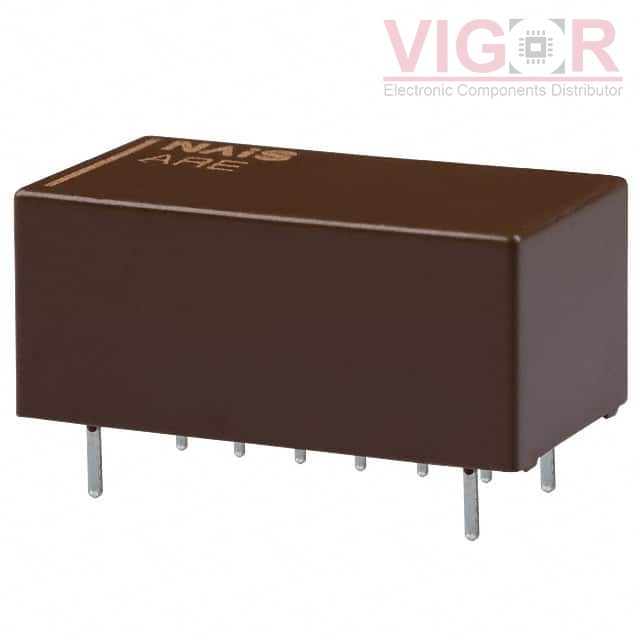

Image is for reference,
please contact us to get the real picture

Part No :

ARE1309

Manufacturer
Panasonic
Description
RELAY RF SPDT 500MA 9V
Catalog
High Frequency (RF) Relays
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ARE1309 PDF
Availability
0 pieces
Unit Price
$4.56000

Current price of ARE1309 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ARE1309 Specifications
Type Description
Series:ARE
Package:Tube
Part Status:Not For New Designs
Coil Type:Non Latching
Coil Current:22.2 mA
Coil Voltage:9VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):500 mA
Switching Voltage:30VDC - Max
Must Operate Voltage:6.75 VDC
Must Release Voltage:0.9 VDC
Operate Time:10 ms
Release Time:5 ms
Features:-
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 70°C
