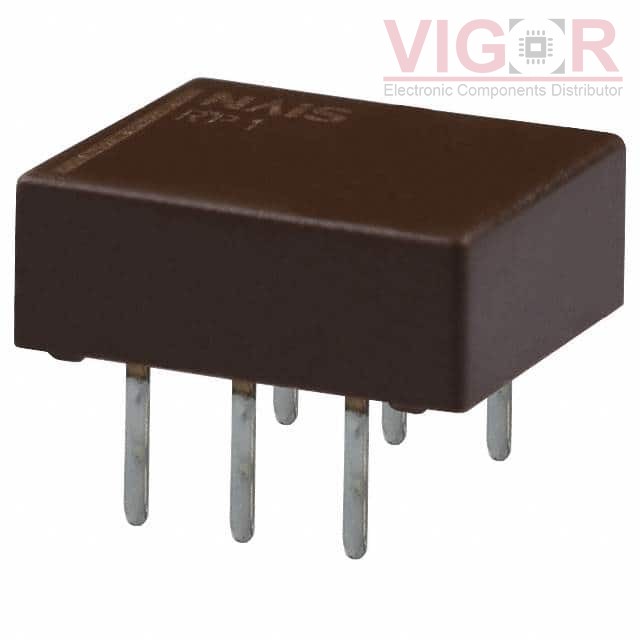

RP1-H-5V

Image is for reference,
please contact us to get the real picture

Part No :: RP1-H-5V

Manufacturer: Panasonic

Description: RELAY RF SPDT 100MA 5V

Catalog: High Frequency (RF) Relays

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: RP1-H-5V PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of RP1-H-5V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RP1-H-5V Specifications

Type	Description
Series:	RP
Package:	Tube
Part Status:	Obsolete
Coil Type:	Non Latching
Coil Current:	28.1 mA
Coil Voltage:	5VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	100 mA
Switching Voltage:	30VDC - Nom
Must Operate Voltage:	3.75 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	3 ms
Release Time:	2 ms
Features:	-
Mounting Type:	Through Hole
Termination Style:	PC Pin
Operating Temperature:	-40°C ~ 70°C
