JTV1S-TMP-18V

JTV1S-TMP-18V

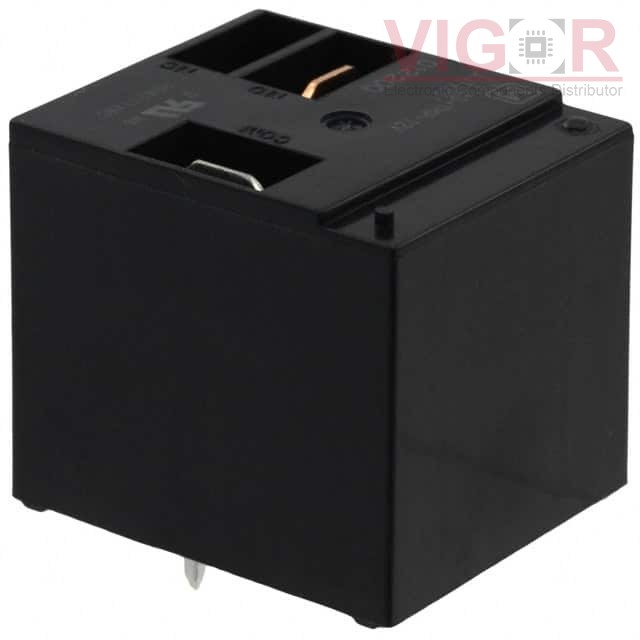

Image is for reference,
please contact us to get the real picture

Part No :

JTV1S-TMP-18V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 20A 18V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
JTV1S-TMP-18V PDF
Availability
46 pieces
Unit Price
$4.63000

Current price of JTV1S-TMP-18V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTV1S-TMP-18V Specifications
Type Description
Series:JT-V
Package:Bulk
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:18VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:55.6 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:13.5 VDC
Must Release Voltage:1.8 VDC
Operate Time:15 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
