HE1AN-SW-AC12V

HE1AN-SW-AC12V

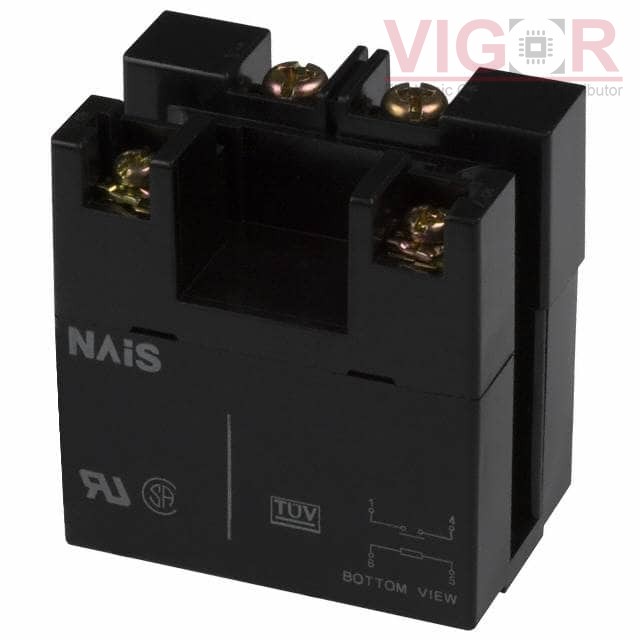

Image is for reference,
please contact us to get the real picture

Part No :

HE1AN-SW-AC12V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 30A 12V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
HE1AN-SW-AC12V PDF
Availability
0 pieces
Unit Price
$20.17800

Current price of HE1AN-SW-AC12V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HE1AN-SW-AC12V Specifications
Type Description
Series:HE
Package:Bulk
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:12VAC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):30 A
Switching Voltage:277VAC, 30VDC - Max
Coil Current:138 mA
Coil Type:Non Latching
Features:-
Termination Style:Screw Terminal
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:8.4 VAC
Must Release Voltage:1.8 VAC
Operate Time:30 ms
Release Time:30 ms
Operating Temperature:-50°C ~ 55°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
