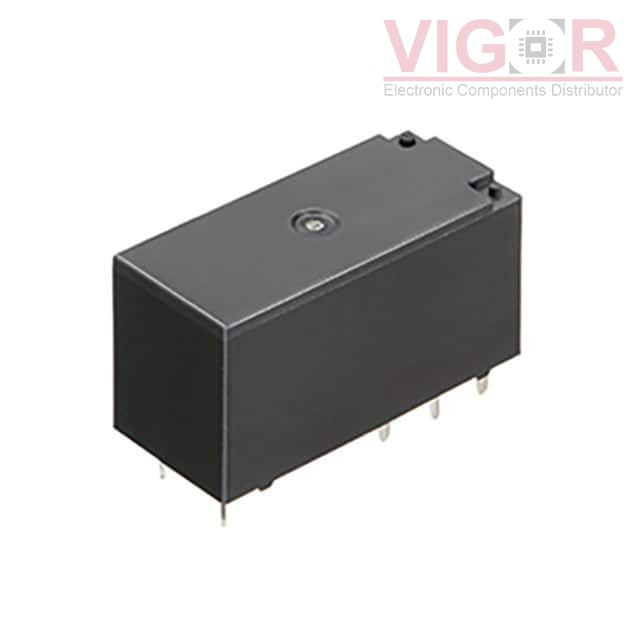

ALZN1F12W

Image is for reference,
please contact us to get the real picture

Part No :: ALZN1F12W

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPDT 16A 12V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: ALZN1F12W PDF

Availability: 189 pieces

Unit Price: ~~$2.84000~~

Current price of ALZN1F12W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALZN1F12W Specifications

Type	Description
Series:	ALZN
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	16 A
Switching Voltage:	440VAC - Max
Coil Current:	33.3 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 105°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
