APAN3109

APAN3109

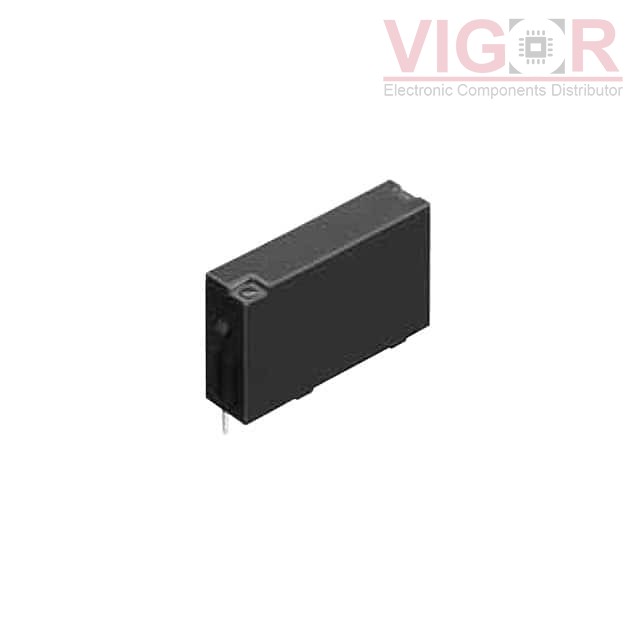

Image is for reference,
please contact us to get the real picture

Part No :

APAN3109

Manufacturer
Panasonic
Description
RELAY GENERAL PURPOSE SPST 5A 9V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
APAN3109 PDF
Availability
828 pieces
Unit Price
$5.26000

Current price of APAN3109 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APAN3109 Specifications
Type Description
Series:PA-N
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 110VDC - Max
Coil Current:12.2 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:6.3 VDC
Must Release Voltage:0.45 VDC
Operate Time:10 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 90°C
Contact Material:Silver Nickel (AgNi), Gold (Au)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RT214615

RT214615

RELAY GEN PURPOSE SPDT 12A 115V
HOT RY533012

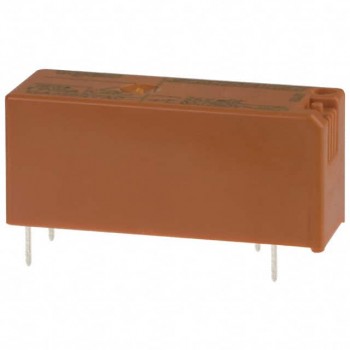

RY533012

RELAY GEN PURPOSE SPST 8A 12V
HOT HL2-H-AC24V-F

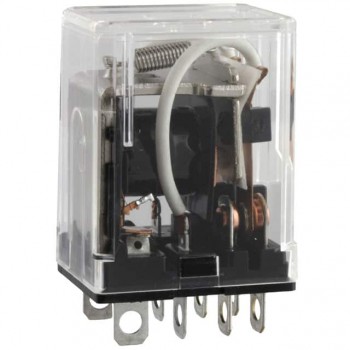

HL2-H-AC24V-F
