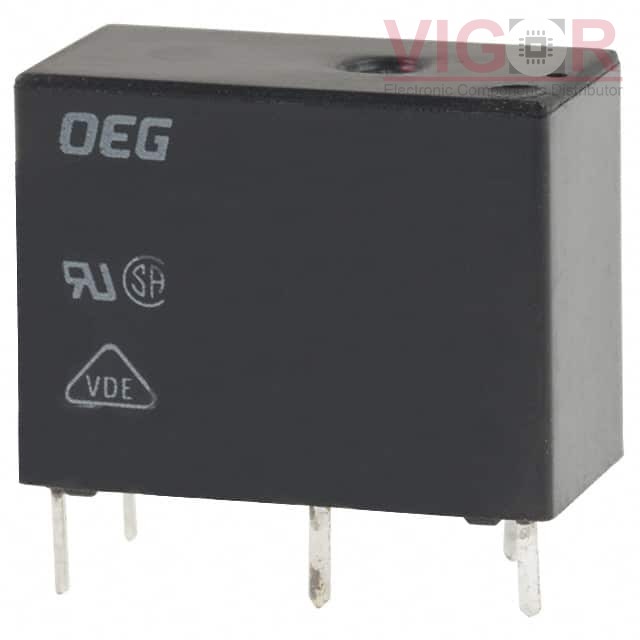

PCH-109D2H,000

PCH-109D2H,000

Image is for reference,
please contact us to get the real picture

Part No :

PCH-109D2H,000

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GENERAL PURPOSE SPDT 5A 9V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
PCH-109D2H,000 PDF
Availability
0 pieces
Unit Price
$1.23134

Current price of PCH-109D2H,000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCH-109D2H,000 Specifications
Type Description
Series:PCH, OEG
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):5 A
Switching Voltage:277VAC, 30VDC - Max
Coil Current:44.4 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:6.3 VDC
Must Release Voltage:0.45 VDC
Operate Time:10 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT V23105A5301A201

V23105A5301A201

RELAY TELECOM DPDT 3A 5V
HOT RY533024

RY533024

RELAY GEN PURPOSE SPST 8A 24V

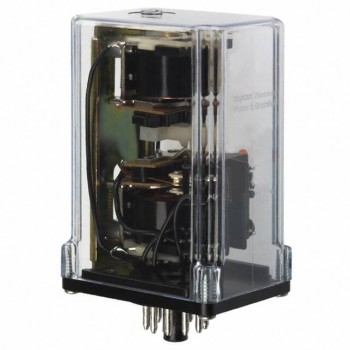

HOT KBP-11DG-24
