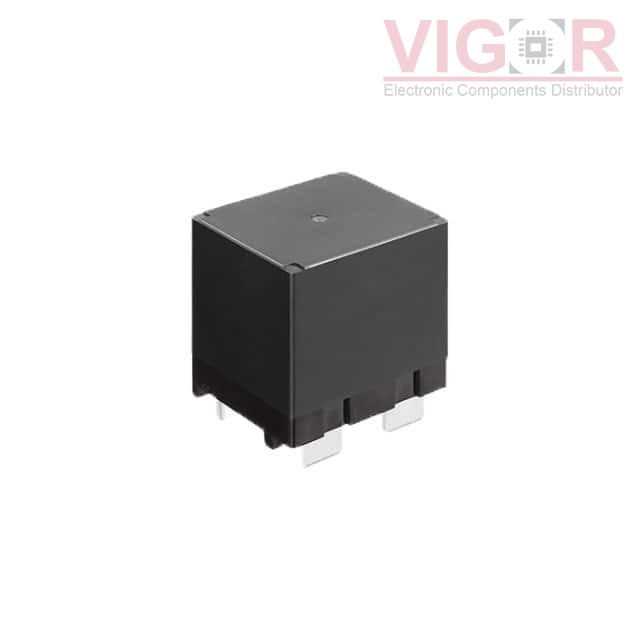

HE1AN-W-DC12V-Y6

HE1AN-W-DC12V-Y6

Image is for reference,
please contact us to get the real picture

Part No :

HE1AN-W-DC12V-Y6

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 90A 12V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
HE1AN-W-DC12V-Y6 PDF
Availability
0 pieces
Unit Price
$33.43000

Current price of HE1AN-W-DC12V-Y6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HE1AN-W-DC12V-Y6 Specifications
Type Description
Series:HE-PV
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):90 A
Switching Voltage:277VAC - Max
Coil Current:160 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:8.4 VDC
Must Release Voltage:1.2 VDC
Operate Time:30 ms
Release Time:10 ms
Operating Temperature:-50°C ~ 55°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
