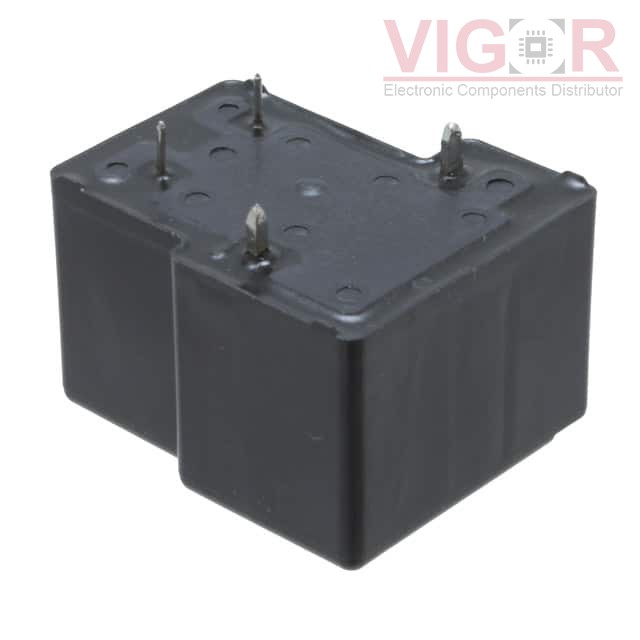

JTN1AS-PA-F-DC15V

JTN1AS-PA-F-DC15V

Image is for reference,
please contact us to get the real picture

Part No :

JTN1AS-PA-F-DC15V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 30A 15V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
JTN1AS-PA-F-DC15V PDF
Availability
0 pieces
Unit Price
$3.98000

Current price of JTN1AS-PA-F-DC15V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTN1AS-PA-F-DC15V Specifications
Type Description
Series:JT-N
Package:Bulk
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:15VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):30 A
Switching Voltage:277VAC - Max
Coil Current:53.3 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:11.25 VDC
Must Release Voltage:1.5 VDC
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RU4S-M-D110

RU4S-M-D110

RELAY GEN PURPOSE 4PDT 6A 110V
HOT 38.61.0.125.0060

38.61.0.125.0060

RELAY SPDT 6A 125V AC/DC

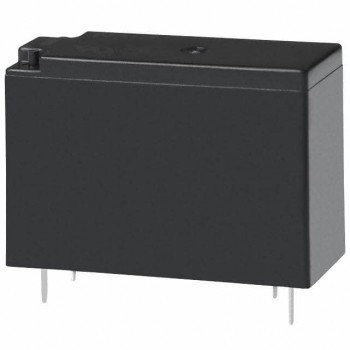

HOT JW1FSN-DC9V
