G2R-1-EDC22

G2R-1-EDC22

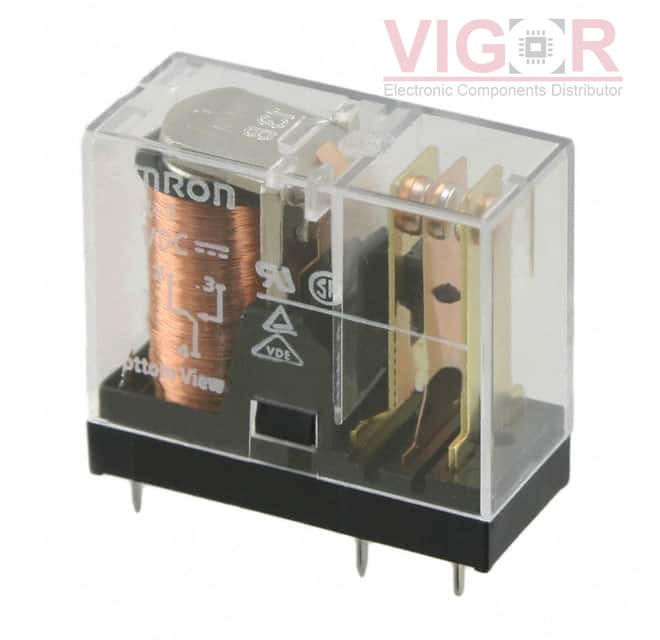

Image is for reference,
please contact us to get the real picture

Part No :

G2R-1-EDC22

Manufacturer
Omron Electronics Components
Description
RELAY GEN PURPOSE SPDT 16A 22V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
G2R-1-EDC22 PDF
Availability
0 pieces
Unit Price
$3.62146

Current price of G2R-1-EDC22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G2R-1-EDC22 Specifications
Type Description
Series:G2R
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:22VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):16 A
Switching Voltage:380VAC, 125VDC - Max
Coil Current:24.1 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:-
Must Operate Voltage:15.4 VDC
Must Release Voltage:3.3 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Alloy
Relay Type:General Purpose
